The importance of air quality in one’s home cannot go unrecognized. One way to improve air quality is to consider using a dehumidifier coupled with a central cooling and heating system. This blog covers the main focus, which is the main benefits of this integration, the technical information necessary, and how to do it in detail. This article attempts to embrace the use of dehumidifiers effectively and easily by considering issues such as controlling humidity, energy saving, and compatibility of systems to improve indoor air quality.

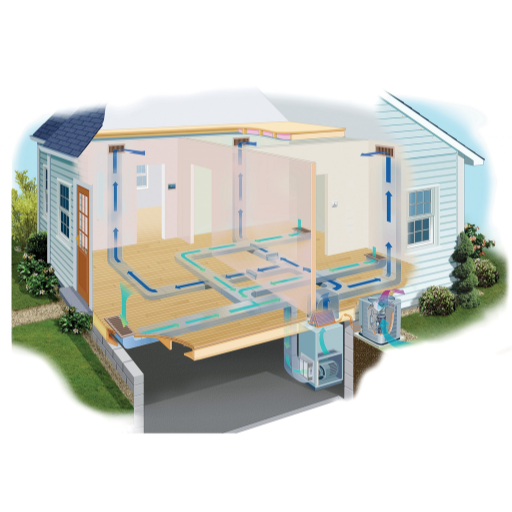

What is a whole-house dehumidifier and how does it work with an HVAC system?
A dehumidifier for the entire house is a type of dehumidifier for the whole of an building that extracts moisture from the air in order to control and sustain humidity levels at the desired point. It does so through ductwork, utilizing the ability to pull and circulate air to all house rooms. The dehumidifier draws in vapor-filled air and passes it through a cooling system to condense it, after which it reheats the now-dehumidified air before returning it to the household. When combined with HVAC, heating, cooling, and air quality in relevant spaces are maintained uniformly with improved moisture control. This mixture prevents strain on the HVAC system because there is no need to work too much to achieve cooling levels for effective dehumidification, which can damage what is being cooled. Instead, it assists in protecting parts of the building from moisture damage while cooling and improving comfort.
Beginning Steps to Utilizing Whole-House Dehumidifiers
Whole-house dehumidifiers, also known as dehumidifiers for the entire house, extract humidity-laden vapor with the use of a refrigeration cycle. The whole process may seem complex, but it essentially consists of pulling humid air through a network that cools it past its dew point to condense the vapor. Once the liquid is formed, it can be collected and drained. The now dehumidified air is reheated to a comfortable temperature before being passed through the HVAC system and returned into the building.
When it comes to the technical details for the whole-house dehumidifiers, some key parameters need to be addressed:
- Capacity (Pints Per Day—PPD): This is the dehumidifier’s output in terms of moisture extracted per day. Most units have a capacity between 50 and 130 PPD, depending on their size and application.
- Energy Efficiency (Liters per kilowatt-hour—L/kWh): Dehumidifiers with better ratings consume less energy. In the United States, the standard for dehumidifiers is to achieve at least 1.9 liters per kilowatt hour, which puts the dehumidifier into the “ENERGY STAR” range.
- Airflow (Cubic Feet per Minute—CFM): Airflow is usually between 200 and 500 CFM, which is adequate for setting up an HVAC system and for sustaining airflow and dehumidification within the confines properly.
- Operating temperature range: The normal operating temperature range for whole-house dehumidifiers is between 40 and 100 F, while low-range units are equipped with anti-frost features to prevent the coil from freezing.
- Noise Level (Decibels – dB): Dehumidifiers made for home use should operate below 50 – 60 dB.
Dehumidifiers will operate as intended without fault and are optimized for indoor dehumidifying conditions. Proper sizing and consideration of these factors are necessary to achieve complete effectiveness and comfort.
The intertwining of whole-house dehumidifiers with HVAC systems
Whole-house dehumidifiers are attached to HVAC systems using the system’s ductwork, enabling the flow of conditioned air through the dehumidifier. In this way the air gets dehumidified before being supplied to the house’s rooms. Powering the dehumidifier simultaneously with the HVAC system’s air handler achieves these objectives while ensuring consistent airflow alongside moderated humidity levels indoors. The control settings of the dehumidifiers can also be linked to the HVAC system’s thermostat or to a separate humidistat for effortless automatic regulation. This combined technique boosts indoor air quality with the effectiveness of climate control systems.
Why you should invest in a central dehumidifier for your entire house
A central dehumidifier allows the entire house area to be monitored to control humidity, which enhances the comfort, air quality, and living experience of the occupants. Preventing health and property impacts caused by excessive moisture such as mold, dust mites, or warped wood is made possible by reducing humidity levels. Moreover, it enhances the home’s energy efficiency when balanced humidity levels are maintained, because the HVAC system works efficiently in lower humid environments. This is especially useful in big houses, preventing deformation while allowing the HVAC system to work less without compromising the much-needed comforts.

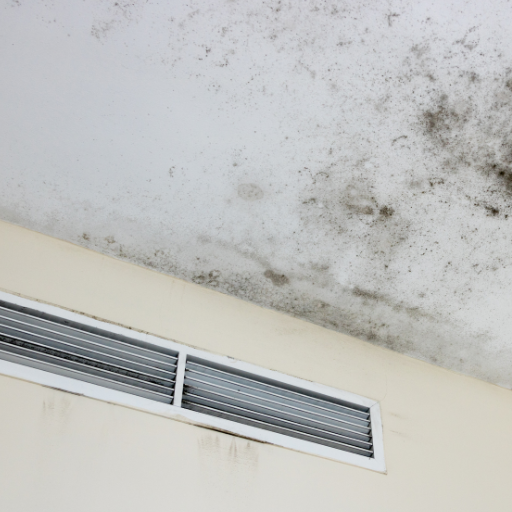

What are the benefits of adding a whole-house dehumidifier to your HVAC system?
Adding a whole house dehumidifier to your HVAC system can bring many benefits. It guarantees even moisture levels all across the house, decreasing the chances of mold and mildew growing, which are dangerous for people and property. This also boosts indoor air quality by improving humidity levels conducive to allergens thriving, such as dust mites. It also increases the efficiency of the HVAC system, allowing it to use less energy and cost less to operate because it can cool better in drier air. It also prevents wooden furniture, flooring, and structural components from being damaged by excess moisture, resulting in increased durability and comfort. These systems just need to be tuned once and operate automatically, require little maintenance and adjustment.
Improving indoor air quality and comfort
Whole-house dehumidifiers significantly improve indoor air quality and make the house more comfortable. They achieve that by keeping the indoor humidity level between 30% and 50%, dramatically reducing the chances of mold, mildew, or dust mites propagating, all contributing to respiratory problems and allergies. This balance also helps diminish the clammy feeling accompanied by excessive moisture. Also, it improves the thermal comfort of the occupants as they can cool more efficiently along with the HVAC system.
From a technical point of view, modern dehumidifiers for the entire home can remove at least 70 to 100 pints of moisture daily, depending on the unit and the climate, along with the footage area to be covered. Furthermore, most units come with built-in air filters which also aid in air quality because it clears the air of particulates. With the addition of smart humidistat integration and automation, these units provide removal of excess moisture with supremely minimal user intervention to achieve optimal comfort and health at the same time without compromising HVAC efficiency.
Preventing overgrowth for mold and excess moisture
Maintaining indoor humidity to tackle excess moisture is the first step to stopping mold overgrowth. It’s essential to achieve moderation by targeting between 30 to 50%—good ventilation around moisture-prone areas, such as bathrooms, kitchens, and basements. Incorporation of dehumidifiers or exhaust fans can assist in the removal of excessive moisture. Addressing water leaks effectively is essential as doing so prevents moisture build up. This can be ensured by proper drainage around the foundation and using water-resistant materials in critical areas. Regular cleaning eliminates surfaces that encourage mold growth while decreasing the amount of moist and porous materials indoors reduces the chances of mold growth.
Improving Your Air Conditioner’s System Performance
With regular maintenance, your air conditioning system becomes more efficient. For instance, clean or replace filters every 1 – 3 months, as clogged filters can restrict airflow, causing strain on the system. Gaps and leakage around ducts and windows need to be sealed to reduce conditioned air from escaping. Set the thermostat so that the temperature for cooling is increased when cooling is least needed, which reduces strain on the system. Ensure that outdoor units are not covered in debris and that there is enough space around the unit so that air can flow freely. You can also improve insulation in your house, as it helps reduce heat load on the system and makes indoor temperature maintenance easier.
How do you install a whole-house dehumidifier in an existing HVAC system?
To install a dehumidifier on an existing unit for central air conditioning, implementing an HVAC system is essential to achieve successful integration and workability. Choose a dehumidifier with a matching capability and configuration as your HVAC system – then place the piece appropriate to the unit. At this stage, the dehumidifier has to be positioned close enough to the HVAC unit like in the utility room or basement. There should also be enough space to carry out maintenance procedures. The following process is to join the dehumidifier to the ducting system of the HVAC unit, which can be done with the return duct or a separate dedicated duct and dehumidifier installation. Ensure that there are provisions to drain off contended water from a suitable location or an existing condensate pump. Next, use the thermostat or humidistat to power the unit, wire the appliance, and set it up for the central unit. From these, check the setup to ascertain the functionality and airflow around the unit after the configuration has been done. Ensure that there is an increase in the relative humidity levels indoors too. Always ensure the assistance of HVAC professionals for the most suitable set-up and safety requirements as well.
Evaporative Air Conditioners: Ducted Systems’ Re-Explained
For a ducted system to have a dehumidifier, the dehumidifier must be installed outside the house. The dehumidifier mustn’t limit airflow or worsen the system. Check the specifications of the HVAC system, such as the Blow CFM rating, duct sizing, and overall tonnage. With these factors in place, the type of dehumidifier being connected will also be considered: Units used for homes are usually PPD 30 – 70 and other installations go for PPD above 90. It is necessary for the ductwork to be already set; having an available return duct connection or adding one without too much change to static pressure determines compatibility. It is also worth checking if the electrical system can sustain a new load. Consider how circuits will be overloaded and the voltage requirements beforehand (120V or 240V).
Step-by-step guide to whole-house dehumidifier installation
- Once you have selected the ideal site for installation, where the unit is close to the HVAC system or basement, the next step is ensuring the unit has space for maintenance inspections.
- Measure and fabricate the ductwork for the dehumidifier connection. Supply ducts should be added to the main HVAC ducts, or separate supply and return ducts should be constructed as necessary.
- As needed, fasten the dehumidifier to the floor, wall, or ceiling on level, paying attention to the model’s requirements and the space available.
- The supplied duct adapters are attached to the existing ducts for the additional connection to the hvac system. Ensure all the seals made are intact, as to prevent airflow leakage.
- All necessary drains for condensate disposal should be reinforced. A drain line should be added to the port available, and it should slope to a pump or floor drain.
- A dedicated electrical circuit connects the unit, based on the manufacturer’s specifications. Controls, thermostats, and wiring of the base unit are also done.
- After all connections are complete, a detailed examination of all the connection points is conducted. Activate the system and check if the dehumidifier usually operates.
When hiring an HVAC expert for installation is recommended
It is always best to consult an HVAC technician when installing a dehumidifier in some instances, such as lacking experience with HVAC systems or if installation entails complicated alterations in pre-existing ductwork. Moreover, professionals should also deal with any wiring requiring dedicated circuits or sophisticated thermostats to meet local electrical standards and safety protocols. Further, should the system need special drainage setups like condensate pumps or significant height differences, it is best to seek experts to avoid long term damage such as leaks and inefficiencies. Lastly, HVAC experts can provide precise load calculations to ensure their recommendation increases the performance and energy efficiency of the dehumidifier.

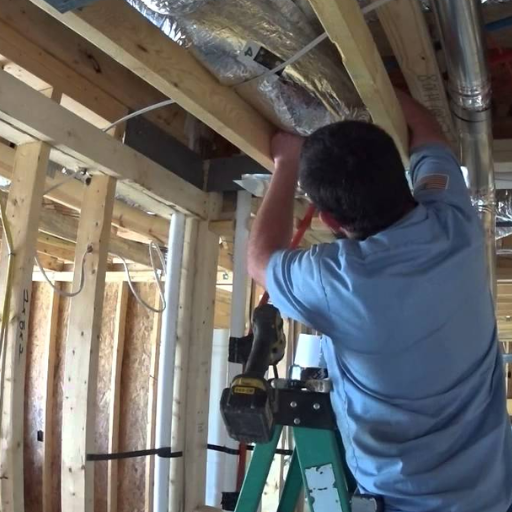

What is the cost of installing a whole-house dehumidifier?
The price for a complete installation of a whole-house dehumidifier ranges from $1,000 to $2,500, which covers the unit and labor. An example of these might be The type of unit, how big the dehumidifier is, how easy or difficult the installation is, existing ductwork to the HVAC system, and modifications to the system. Additional expenses may arise if electrical upgrades, such as dedicated circuits, are necessary. The system will work better and last longer by hiring a trained professional for correct installation.
What impacts the price of a whole-house dehumidifier?
- Dehumidifier Size and Capacity
The size and capacity of the dehumidifier are significant factors in the overall cost. Both the physical and functional attributes greatly influence the pricing. Larger units are built to work in larger areas or high humidity, and they are usually more expensive than traditional smaller units. An accurate evaluation of the home’s climate and moisture levels is critical to selecting the correct capacity.
- Installation Complexity
The pulse of household existence—the HVAC system—can greatly influence not just comfort but also the development of the new custom duct connections, which might increase the expense of labor and unit installation. It is plausible to argue that the more sophisticated and intricate the engineering problem is, the more costlier it would be, and homes with complicated layouts would require more resources and time.
- HVAC System Alterations
Changes to the already existing HVAC system, like moving ductwork or adding dampers, increase overall costs. Furthermore, older HVAC systems or those that are unable to comply with the HVAC unit may need further adjustments to fit.
- Electrical Changes
Upgrades may be necessary in some dehumidifiers, which require specific electrical circuits or higher-capacity connections. Additional costs will arise when the electrical systems of the home need to be improved, such as adding circuit breakers or wiring.
- Additional Accessories and Functions
Dehumidifiers with added smart features, like Wi-Fi, remote controls, or humidity measuring systems, have higher price tags. Additionally, a condensate pump and air filters will increase the expenses.
- Labor Cost of Professionals
Costs of installation tend to vary with the help of professionals, depending on the specific region. Areas with a higher cost of living and fewer skilled workers will have elevated labor charges compared to areas with a competitive rate.
- Maintenance Packages and Warranty Packages
Servicing the equipment to ensure energy efficiency over time makes choosing maintenance packages and extended warranties cost-effective in the long run despite the upfront expense.
Comparative Cost Analysis: Whole House Vs. Portable Dehumidifiers
The cost, effectiveness, and application area of whole-house dehumidifiers differs from their portable counterparts. The whole house systems incur higher costs as they need a one-time investment of 1000 to 3,000 US dollars for everything, including baseline installation. These systems interface with the HVAC of the house and serve to control humidity levels in an entire house optimally. They are rated in terms of the pound of moisture extracted from the air, which can exceed 150 or range in the low 70s, making them useful for large areas needing high humidity control. Portable units, however, have lower prices and range between 150 and 500 dollars. These types of units are free-standing and operate optimally in single, more minor, confined spaces and range from 20 to 70 pints a day.
In addition, from a mechanistic standpoint, whole-house dehumidifiers tend to be more expensive because professionals undertake their installation, which may entail new changes to the home’s ductwork and electrical components. These models utilize higher-capacity compressors and more intricate controls that are installed which accounts for their greater energy efficiency and quieter operation than portable models. Covering a larger area, Portable dehumidifiers are also less costly and easier to put into position, but tend to be more inefficient with energy usage and may need to have their water collection tanks emptied often unless used with a drain hose or pump. When selecting a dehumidifier, a household needs to weigh the necessary factors such as the amount of humidity they wish to control, their costs, and the size of the area needing dehumidification.
Long-term Investment Returns and Savings Projected
About the long-term return on investment and savings, whole house dehumidifiers tend to be more economical. These systems are energy star rated, meaning fewer monthly utility bills are incurred over time. Additionally, Maintaining consistent humidity makes it possible to avert expensive outcomes such as mold growth, structural damage, or deterioration of earmarked furniture or electronics. While portable units have cheaper initial costs, there are far more expenses, which offset that saving, such as high energy usage, while also regular maintenance, like emptying water tanks to keep the machines functional. Energy efficiency ratings and operational costs have to be carefully assessed in order to make the most economical choice.

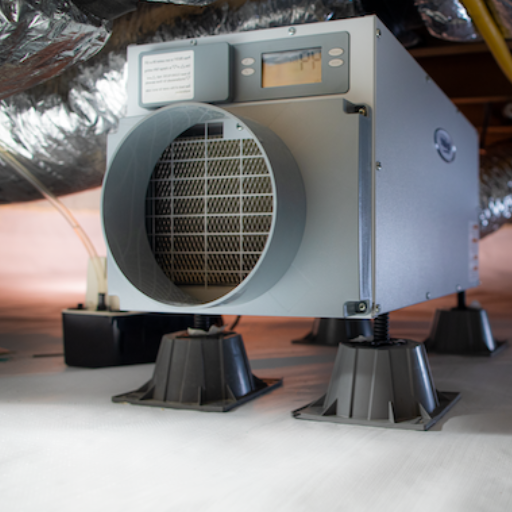

How does a whole-house dehumidifier improve energy efficiency?
Like large room units, they are meant to reduce humidity in the whole house. Installed alongside the central air conditioning system, they help maintain energy efficiency by reducing the accommodation of unwanted moisture in the building. When the humidity levels within the home are controlled, air conditioners do not need to work as hard to maintain desired indoor temperatures. Therefore, these systems consume less energy and allow the HVAC systems to function for a longer period. These systems also serve to preserve and protect the building against several undesired factors from the external environment. By controlling the moisture levels, the heat transfer, and, consequently, the cooling or heating cycles, these systems enhance insulation effectiveness and alter the frequency of HVAC systems needing to cool or heat the building. These systems are designed to replace multiple portable air conditioning units, so their power consumption is lower while their performance is steady.
Efficient Operation of HVAC Systems
The entire house dehumidifier controls the amount of moisture in the building and therefore, decreases the workload of the HVAC system, avoiding frequent triggers of the hot and cold air dispersion units. These units are deigned to achieve better indoor air quality and to allow central air systems to operate with less moisture. Even with all the factors of these systems in place, the end result is fewer cycles of operation while simultaneously lowering the long-term spending and reducing the damage to the house.
Reducing Air Conditioning and Heating Costs through Effective Humidity Management
Effective humidity management ensures maintaining a more comfortable indoor environment, thus allowing for savings on an air conditioning or heating bill. The significant energy saving comes from the ability to keep the thermostat at a higher range when proper air conditioning is in use. The feeling of coolness is increased with ideal moisture levels in the air. Likewise, during winter, higher moisture levels in the air reduce dryness and, consequently, overworking heating systems. This steady balance reduces the need for HVAC systems, thus consuming less energy and less utility without sacrificing comfort indoors.
Enhancing energy use in your home
Enhancing energy use in your home starts with strategic upgrades and some self discipline. Use proper air sealing techniques and insulation so that your HVAC system can operate more optimally. Using electronically and mechanically controlled thermostatic valves and energy star-rated systems aids in setting specific temperatures, which results in minimized power usage while maintaining optimal performance. Additionally, incorporating smart thermostats allows for precise climate control and scheduling, preventing unnecessary energy expenditure. Effortless practices such as switching to LED lighting, optimizing natural light, and unplugging devices when not in use aid in energy reduction. Homeowners can attain efficiency in energy use, which aids in cost-effectiveness by undertaking these measures.

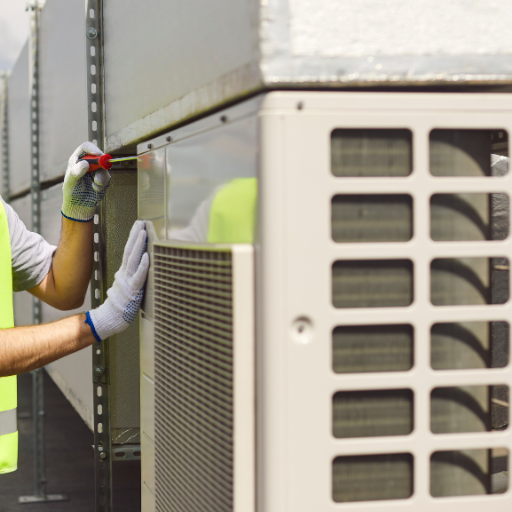

What maintenance is required for a dehumidifier-HVAC system?
To maintain appropriate performance and a long system life, one must regularly service a dehumidifier-HVAC system. Start by cleaning or replacing the air filters frequently to avoid dust buildup, which may restrict airflow and diminish effectiveness. Always monitor and clean the evaporator and condenser coils to avoid any potential clogging that could impede willing heat exchange. Inspect the condensate drain line regularly to determine that it is not blocked and is functioning properly because otherwise, this may lead to water/ moisture leakage. Check the humidity settings on the dehumidifier while ensuring that they suit the indoor settings and change them if necessary. Additionally, consider getting periodic checks on the system’s electrical components, refrigerant levels, and general operations done by an HVAC expert to spot and fix any issues before they become a problem.
Identification of issues for system upkeep
Regular maintenance is necessary for a dehumidifier-HVAC system to try and avoid issues from arising. Air filters have to be checked to see if there is a blockage to airflow, and they must be cleaned or exchanged as necessary. Evaporator and condenser coils have to be cleaned periodically so that they do not work inefficiently because of dirt accumulation. It is critical to maintain the condensate drain line so that there are no blockages which might limit drainage and lead to leaks. Humidifiers also should be checked on a periodic basis for their setting and for recalibration if the controlled humidity is unsuitable for indoor conditions. Regular systems assessments and measurements of the refrigerant levels, electrical parts functionality, and early identification of troubling signs should be done to ensure that the HVAC system operates for a sustained amount of time and remains effective.
Common issues and troubleshooting tips
Dehumidifier HVAC systems frequently suffer from low flow problems resulting from clogged air filters or blocked vents. This can be mitigated by ensuring that filters are replaced regularly and that vents are not obstructed. However, if the air conditioner is running but humidity levels remain uncomfortably high, the issues could stem from insufficient refrigerant or a faulty compressor. The technician needs to check the refrigerant pressure and the functioning of the compressor. If the temperature or humidity level is way off, then calibration of the sensor might be the issue. To rectify this issue, the humidity sensor should be recalibrated to ensure that its settings are 30-50% relative humidity, which is the optimum for indoor environments. Finally, water leaks from the system could result from condensation created by a blocked drain and should be removed with a vacuum or flexible brush to unblock the line. If these issues are resolved in time, the system should function normally.
At What Intervals Should You Consider Professional Maintenance For Your HVAC System?
Like all systems, I maintain my HVAC system professionally at least once each year to ensure it is working to its full potential. I typically have the heating unit serviced and inspected in autumn and the cooling unit in spring. This regular maintenance keeps everything running smoothly, increases equipment longevity, and consequently prevents the equipment from being abused for a longer timeframe.
Reference sources
Heating, ventilation, and air conditioning
Frequently Asked Questions (FAQs)
Q: What is a whole home dehumidifier and how does it work with an HVAC system?
A: A whole home dehumidifier is a device integrated with your HVAC system to remove excess moisture from the air throughout your home. It works in conjunction with your heating and cooling system to maintain optimal humidity levels, improving air quality and comfort. Unlike portable units, a whole house dehumidifier connects directly to your existing HVAC ductwork, allowing it to effectively manage humidity in your entire home.
Q: How can integrating a dehumidifier with my HVAC system improve air quality?
A: Integrating a dehumidifier with your HVAC system can significantly improve air quality by reducing excess moisture in the air throughout your home. This helps prevent mold growth, reduces dust mites, and alleviates allergy symptoms. Additionally, it can enhance the efficiency of your air conditioner, as dry air feels cooler, allowing you to set your thermostat slightly higher and potentially lower your energy bills.
Q: What are the benefits of a whole home dehumidifier compared to a portable unit?
A: A whole home dehumidifier offers several advantages over a portable unit. It can effectively control humidity levels in your entire house, not just a single room. This setup allows the dehumidifier to work seamlessly with your HVAC system, providing consistent humidity control. It’s also more energy-efficient, quieter, and requires less maintenance than multiple portable units. Furthermore, it can help extend your HVAC system’s lifespan by reducing strain on the air conditioner.
Q: How does dry air affect my home and health, and how can a dehumidifier help?
A: Dry air can cause various issues in your home and affect your health. It can lead to static electricity, cracking wood furniture, and peeling wallpaper. Health-wise, it can cause dry skin, irritated sinuses, and increased susceptibility to colds. A whole home dehumidifier helps maintain optimal humidity levels, preventing these problems associated with dry air. By working with your heating and cooling system, it ensures comfortable humidity levels throughout your home year-round.
Q: How does a whole home dehumidifier impact ventilation in my house?
A: A whole home dehumidifier can positively impact ventilation in your house. By removing excess moisture from the air, it allows your HVAC system to circulate cleaner, drier air throughout your home. This improved air circulation can help eliminate stale odors and reduce the concentration of indoor pollutants. Additionally, some whole home dehumidifiers come with built-in air purification features, further enhancing your home’s overall air quality and ventilation.
Q: Can I install a whole home dehumidifier myself, or do I need a professional?
A: While it’s possible for a skilled DIY enthusiast to install a whole home dehumidifier, it’s generally recommended to hire a professional HVAC contractor. The installation process involves integrating the unit with your existing HVAC system, which requires specialized knowledge and tools. A professional can ensure proper sizing, correct installation, and optimal performance of the dehumidifier. They can also address any potential issues with your current HVAC setup and make necessary adjustments for the best results.
Q: How much can I expect to pay for a whole home dehumidifier installation?
A: The cost to install a new whole home dehumidifier can vary widely depending on factors such as the size of your home, the complexity of the installation, and the specific model chosen. On average, you can expect to pay between $1,300 to $2,800 for the unit itself, with installation costs adding another $500 to $1,000. High-end systems or homes with complex HVAC setups may see higher costs. It’s best to get quotes from several reputable HVAC contractors to determine the most accurate price for your specific situation.
Q: How does a whole home dehumidifier affect my energy bills?
A: While a whole home dehumidifier does consume some energy, it can actually help lower your overall energy bills. By removing moisture from the air, it makes your home feel cooler at higher temperatures, allowing you to set your thermostat a few degrees higher without sacrificing comfort. This reduces the workload on your air conditioner, potentially leading to significant energy savings. Additionally, the increased efficiency of your HVAC system due to optimal humidity levels can further contribute to lower energy consumption and reduced bills over time.
